| Category | Assignment | Subject | Computer Science |
|---|---|---|---|
| University | University of East Anglia | Module Title | CMP-6058A/7058A Artificial Intelligence |
The objective of this coursework is to design and implement solutions for a combinatorial game problem known as Hinger, with a focus on comparing the efficiency of different techniques learned in the module. You will collaborate with fellow students (your coursework partners) as a group, subject to approval from the assessment setter. All coding components for this coursework should be part of a single Python project, structured across multiple .py files.
Some tasks in this exercise require some research, particularly around efficient algorithms and better strategies for playing the game. Each Python File created as part of this assessment should be appropriately commented and must include a header comment that contains your group number, your student ID and your assessment partners' student IDs. You may adapt the project header template header.py in the briefs folder on BlackBoard for use in each module file.
Python files without a header comment with your group number and student ID will not be marked.
To support your progress through the coursework, several subtasks are marked with an asterisk (*). These may be deferred to a later stage, as they tend to be more complex and have less impact on subsequent tasks. This structure allows you to prioritize foundational tasks first, while reserving more complex components for when you are better prepared to tackle them.
The Hinger game H(m,n) is played on an ๐ × ๐ rectangular board consisting of ๐ rows and ๐ columns. The top-left cell is designated as position (0, 0). Each cell on the board is either (i) empty, or (ii) active (meaning it contains a pile of one or more counters). Two cells (๐, ๐) and (๐ฅ, ๐ฆ) are defined as adjacent if max {|๐ − ๐ฅ|, |๐ − ๐ฆ|}=1. This means they are directly next to each other: horizontally, vertically, or diagonally. A binary state refers to a board configuration where each cell contains either zero or one counter.
An active region is a maximal connected set of active cells, denoted as region ๐ , with the following three properties: (i) each cell in ๐ is active, (ii) any two cells in ๐ are connected by a path of adjacent active cells within ๐ , and (iii) all active cells adjacent to any cell in ๐ are also included in ๐ . For example, in State A of Figure 1, all cells containing one counter form a single active region, while the cell at position (0, 4), which contains two counters, constitutes a separate region.

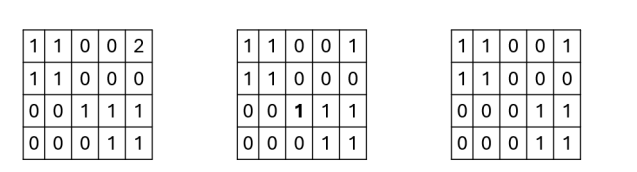

Figure 1: Example of three states of the Hinger game played on a board with 4 rows and 5 columns. Left (state A) contains ten active cells forming two distinct active regions. Middle (State B) is a binary state and contains a hinger cell (2,2) highlighted in bold. Right (State C) displays three active regions. In a hypothetical gameplay scenario, player Alice performs a move at position (0,4), transitioning the board from State A to State B. Subsequently, player Bob performs a move at position (2,2), transforming State B into State C. Bob wins the game, as his move targets a hinger cell, which is a winning action under the game’s rules. Note that the cost of Alice’s move is 1 while that of Bob’s move is 4 because there are three active cells adjacent to (2,2) when the move occurs.
In Hinger, a single legitimate move consists of removing one counter from an active pile. The cost of a move at cell (๐,๐) is one plus the number of active cells adjacent to (๐,๐) (see Figure 1 for an illustration). A hinger is a special type of active cell: it has only one counter and when a move is made on a hinger (i.e., the last counter is removed from this cell), the cell becomes empty and the number of active regions on the board increases by one or more. An example of a hinger is shown in bold in State B of Figure 1. The game is played by two players who take turns removing one counter from the board. The first player to make a move on a hinger wins the game, as this action triggers a critical change in the board's structure. If all counters are removed from the board without either player acting on a hinger, the game ends in a draw.
A safe path between two states, ๐1 and ๐2, is defined as a sequence of moves that transforms ๐1 into ๐2, such that none of the intermediate states (including both ๐1 and ๐2) contains a hinger cell. In other words, the entire transition must avoid increasing the number of active regions on board. For example, no safe path can include State B in Figure 1, since it contains a hinger cell at position (2, 2).
Only the Python standard libraries (see https://docs.python.org/3.12/library/index.html for a complete list) and Matplotlib library (https://matplotlib.org/) are allowed for Tasks 1 to 3. For Task 4, you may also use the Pygame library (https://www.pygame.org/docs/) for visualisation. If you are not sure which libraries are permitted, you should contact the assessment setter or module organiser for clarification. Your code should be runnable with Python 3.12, and it is your responsibility to ensure that your program runs smoothly on the lab PCs.
1. Create a Python module file named a1_state.py within your project folder. In the module file, define a State class that encapsulates the basic structure and behavior of a game state in the game Hinger. The class should include one instance variable named grid representing the number of counters in each cell of the board. Your State class should also have:
a. A proper initialiser, which receives a 2D list grid as a parameter.
b. A sensible __str__ method, which returns a readable string representation of the state (e.g., a matrix similar to those in Figure 1, without borders).
c. A generator method named moves() that yields all possible states reachable in one move (i.e., removing one counter from any active cell).
d. A method numRegions() that calculates and returns the number of active regions on the board.
e. A method numHingers() that returns the number of hinger cells in the current state.
f. Any additional utility methods that support gameplay logic or improve code clarity.
g. Within this file, define a test function named tester() to validate your implementation. This function should execute automatically when the script a1_state.py is run directly, but not when imported as a module. Inside this function, implement the following tasks:
i. Create a State instance named sa representing State A from Figure 1, and print its string representation.
ii. Implement additional testing cases to verify your implementation.
2. Create a module file named a2_path.py within your project folder. This module should contain a set of functions for determining and retrieving safe paths between states in the Hinger game, along with a test harness to validate and compare your implementations. Your file should contain the following functions.
a. A function path_BFS(start,end) that receives two binary states, start and end, and returns a safe path (as a list of moves) if such a path exists, or None otherwise, using the Breadth-First Search (BFS) algorithm.
b. A function path_DFS(start, end) which receives two binary states, start and end, and returns a safe path (as a list of moves) if such a path exists, or None otherwise, using the Depth-First Search (DFS) algorithm.
c. A function path_IDDFS(start, end) which receives two binary states, start and end, and returns a safe path (as a list of moves) if such a path exists, or None otherwise, using the Iterative Deepening Depth-First Search (IDDFS).
d. A function path_astar(start,end) which receives two binary states, start and end, and returns a safe path if one exists, or None otherwise, using the A search algorithm. You must include comments directly above the function definition to explain and justify the heuristic function used in your A implementation.
e. A test function named tester() to test the functions you implemented.
f. Write a function compare() to evaluate and compare the performance of the four search algorithms (BFS,DFS, IDDFS, and A*) in finding a safe path between two game states in Hinger. You should design the output of this function to include metrics such as correctness, efficiency, and scalability.
g. [*] A function min_safe(start,end) which receives two states start and end (which are not necessary binary), and returns a safe path with the minimal cost (i.e., the safe path with the lowest total sum of move costs) if such a path exists. Otherwise, it should return None. You need to choose and implement an efficient searching algorithm for this task, and justify your choice in the code comments directly above the function definition.
3. Create a module file named a3_agent.py within your project folder. This module will define an Agent class that models a player capable of making strategic decisions in the Hinger game. The agent should be designed to support multiple modes of play and demonstrate intelligent behavior based on the current game state. The class should include two instance variables: name is a string representing the agent’s name (e.g., your group name, such as A9, as the default name) and modes is a list of game-playing strategies available to your agent.
Your Agent class should also include the following:
a. A proper initialiser, which receives two parameters: size and name. The first parameter size represents the board size as a tuple (m,n), where m is the number of rows and n is the number of columns. The second parameter name is an optional string representing the agent’s name, with your group name as the default value. The initialiser should set up the agent accordingly.
b. A sensible __str__ method.
c. A method move(state, mode) that receives a State object representing the current game board and a playing strategy, and returns a legitimate move for your agent (e.g. a cell position (๐,๐) to act on). If no move is possible (e.g. there are no active cells), return None. Use the best strategy you have implemented as the default value for the mode parameter.
d. Additional supporting methods as needed to facilitate decision-making and strategy implementation for playing a binary Hinger game (that is, the game starts with a binary state). Your modes list should contain
(i) an element named ‘minimax’, for which your agent plays using the minimax strategy, and
(ii) an element named ‘alphabeta’, for which the agent plays using the alphabeta pruning strategy.
e. Within this file, create a test function named tester(), which should runautomatically when the file a3_agent.py is executed directly (but not when imported). In this function add appropriate code to demonstrate and validate the agent’s behavior across scenarios.
f. Implement other advanced strategies for your agent. For example, you may consider implementing a version of Monte Carlo Tree Search (MCTS).
g. A method named win(state) that returns True if the given state (which is not necessarily binary) is a winning position for the player whose turn is to move, and False otherwise.
4. Create a new module file named a4_game.py within your project folder. This module will implement the core gameplay loop for the Hinger game, allowing two agents (or one agent and a human player) to take turns making moves on a shared game state. Within this file, define a function with the signature play(state, agentA, agentB) to simulate a complete game session between two players. It receives a State object representing the initial game board. Furthermore, agentA and agentB are instances of the Agent class (automated player) defined in Task 3, or a human player. For instance, agentA=None indicates that agentA is a human player.
The function should perform all of the following tasks:
Your module file should also have:
a. A proper tester() function to validate your implementation.
b. [*] Conduct you own research and implement additional features to make the game more engaging. Possible extensions could include: a timing-limited game where each turn has a time limit (e.g., 60 seconds), tracking total time used by each player, counting and displaying the number of moves made during the game, saving the move history to a file for analysis or replay, or implementing a graphical user interface (GUI) for visual gameplay.
5. Polish and clean your code to improve its quality. This includes, but is not limited to, the following aspects: appropriate use of comments to explain logic and decision, improved readability through consistent formatting and naming conventions, enhanced robustness ensuring your code handles edge cases and errors gracefully, consideration of scalability (allowing your code to handle larger boards or more complex scenarios), and optimisation for efficiency (such as time usage and winning capacity).
Finally, each student in the group should write an individual reflection report (maximum two pages) structured into the following four sections:
(i) The first section should provide a clear summary of your progress across tasks 1-4, indicating which tasks have been fully completed (including any additional functionalities), partially done, or not completed. You should also include a description of your individual role in completing each task.
(ii) The second section should include a discussion of the performance of your group’s search algorithms (e.g. BFS,DFS, IDDFS, and A*) based on Task 2. This may include a comparison of their relative performance, and suggestions for further improvement.
(iii) The third section should provide a discussion of the performance of your gaming-playing strategy from Task 3, including all the strategies that have been implemented and your assessment of their effectiveness.
(iv) The final section should include a personal summary of how you collaborated with your group members throughout this assignment. You should provide your own assessed contribution splits among the group, with a brief justification. For example, in a three-member group, you may suggest a 33%–33%–33% split for equal contributions, or a 25%–25%–50% split if one member contributed significantly more. In a two-member group, a 50%–50% split may be appropriate if contributions were balanced.
You may include the number of times that your group has met (either virtually or face-to-face for this assignment), how the tasks are allocated, and any challenges encountered during collaboration and how they were addressed. You should also include suggestions for improving collaboration in future group projects, such as better task planning, clearer communication, or using collaborative tools more effectively to track progress and share updates.
