UGEA1243 (UGEB1013) Circuit Theory Electrical Technology Assignment Question

Published: 29 Jul, 2025
Category Assignment Subject Education
University Module Title UGEA1243 (UGEB1013) Circuit Theory Electrical Technology

UGEA1243 (UGEB1013) Question

The circuit shown in Figure A1.1 has four unspecified circuit parameters: is, R1, R2, and R3. To design this circuit, we must specify the values of these four parameters.

The graph shown in Figure A1.2 describes the relationship between the current i and the voltage v of a DC source.

Specify values is, R1, R2, and R3 that cause the current i and the voltage v in Figure A1.1 to satisfy the relationship described by the graph in Figure A1.2.

Verify your answer using a simulation software (for eg. Multisim).

UGEA1243 (UGEB1013) Circuit Theory Electrical Technology Assignment

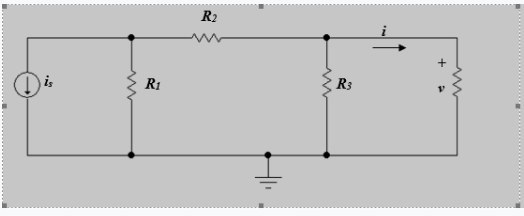

Figure A1.1

UGEA1243 (UGEB1013) Circuit Theory Electrical Technology Assignment

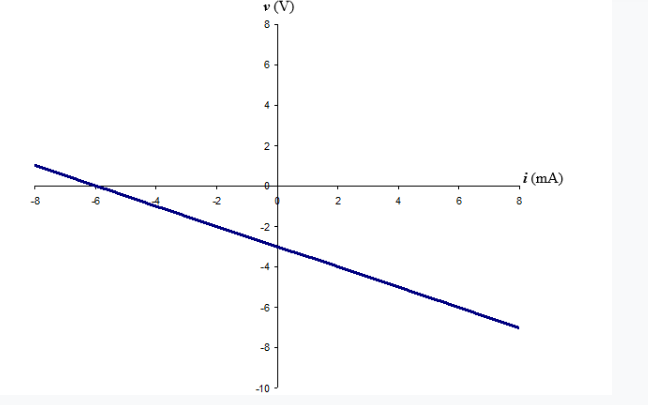

Figure A1.2
