TC50324E: Measurement and Documentation Assignment 2025-2026 Semester 1 | UWL

Module Learning Outcomes of TC50324E

LO1: Develop an understanding of the Rules of Professional Conduct and International Property Measurement Standards (IPMS) and Bills of Quantities.

LO2: Measure low rise (office and residential buildings) in line with the RICS New Rules of Measurement 2 Guidance in sub-structures, site preparation, as well as different elements of the building such as brick and blockwork, flat roofs, floors, partitions, walls, staircases, internal finishing, doors/windows, and drainage.

LO3: Develop an appreciation of the philosophy of coordinated project information

LO4: Develop the ability to use the RICS Code of measuring practice to allow for accurate measurement of buildings and land and buildings on a common and consistent basis.

LO5: Ensure accuracy and practice RICS Data Standards in all methods of measuring including digital measuring.

Traditional Measurement And Bill Of Quantities Preparation

TC50324E Assessment Overview

Today, most bills of quantities are produced using proprietary software packages, each system having its own format for inputting dimensions and formulating descriptions. However, knowledge of measurement conventions is useful to fully understand and appreciated potential problems in the measurement process. The ability to take off manually is an essential skill for any Quantity Surveyor.

TC50324E Scenario

The construction industry is and will continue to be, a key driver of economic recovery as we move back towards normality, and it is critical that the industry plays its part in this recovery and create a more diverse sector. Land availability has become increasingly problematic for smaller firms. Everyone needs access to secure, decent housing. In the UK, housing supply has not been keeping up with demand. Getting access to housing of any type is becoming increasingly difficult for low-income households.

You are a trainee Quantity Surveyor employed by a renowned international engineering, design, and project/cost management consultancy company. Your employer has asked you to provide professional building quantifications and cost consultancy services for drawings attached to this coursework brief on Blackboard.

Task 1  Traditional Measurement

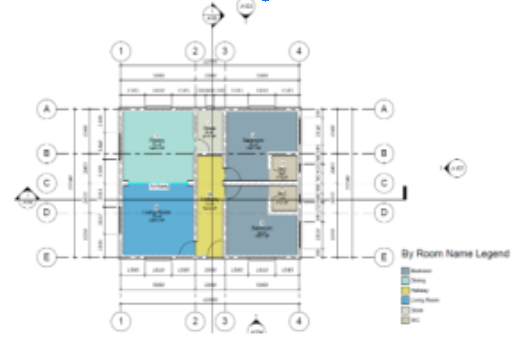

Using the attached drawings on the Blackboard, manually take off for the following items below using NRM2:

Substructure

Site preparation, excavation work for foundation work, backfilling of excavated materials, concrete in foundation, substructure brick/block work, wall cavity, damp proof membrane, DPC, hardcore, and ground floor slab.

Superstructure

Walls including cavity, windows, doors, skirting, floor, ceiling finishing, roofing board, roof trusses, and roofing tiles.

Task 2 Contract Documents Preparation

In addition to task 1 above, in preparation for contract documentation and to demonstrate your understanding of coordinated project information, your manager wants you to carry out the following written assignment:

• a. What is the purpose of a Bill of Quantities (BoQ)?
• Following NRM2, how would you structure a BoQ?
• What is the purpose of the Code of Measuring Practice?

Briefly explain the following terms in a standard Bill of Quantities:

• Preliminaries
• Provisional sum
• Prime cost sums
• Contingency sum
• a. How would you describe the preliminaries section on a Bill of Quantities?
• What information is required to measure preliminaries?
