| Category | Assignment | Subject | Civil Engineering |
|---|---|---|---|
| University | University of South Africa (Unisa) | Module Title | SAN2602 Structural Analysis |
| Due Date: | 23 May 2025 |
| Assessment | Assessment 1 May 2025 |

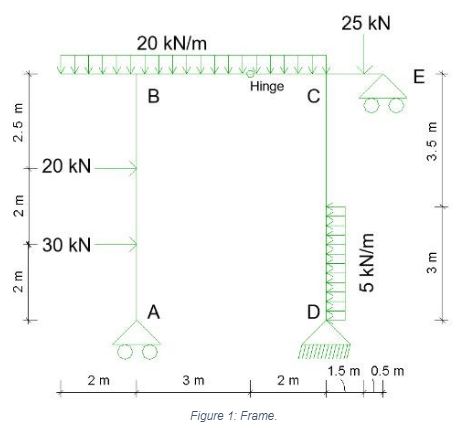

Given the frame in Figure 1 below. Do the following:
1.1 Calculate the reactions at A and D.
1.2 Section the frame and calculate all the forces on the joints.
1.3 Draw the shear force diagram.
1.4 Draw the bending moment diagram.
1.5 Draw the axial diagram (2)
Achieve Higher Grades SAN2602 Assessment 1

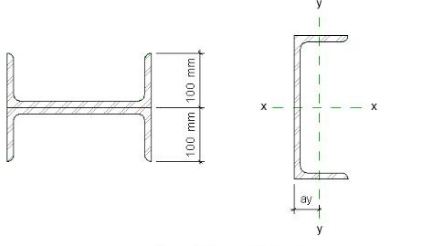

Order Non Plagiarized AssignmentA column in Figure 3 below consists of two grade 300W steel PC300 x 100 Parallel Flange Channels arranged as shown. The column, which is 9 m long, is connected such that it is fixed at both ends about its major principal axis X-X and fixed at the top and pinned at the bottom end about its minor principal axis Y-Y.
3.1 Calculate the Euler buckling load for the strut (14).
3.2 Calculate the failure load for the strut according to Rankine's theory (2).
