QSM202 TUTOR-MARKED ASSIGNMENT ONE (TMA01)

This assignment is worth 15% of the final mark for QSM202 Construction Measurement (2 of 4) Architectural and M&E Works.

The cut-off date for this assignment is 31 August 2025, 2355 hrs.

Question 1

(a) Cite the relevant SMM clauses, identify and describe any TEN (10) items of work that are deemed to be included in the description and measurement of each item of wall and ceiling finishes.

(b) Explain and illustrate clearly with diagrams and calculation examples how SMM clause 15.02c is applied when measuring wall finishes:

(i) Where the suspended false ceiling is installed WITH cornices.

(ii) Where the suspended false ceiling is installed WITHOUT cornices.

(iii) Where there is no false ceiling.

Question 2

Figure Q2 shows the floor plan of a residential unit. Apply measurement techniques to take off quantities for the following (Note: Deductions for doors and windows openings must be clearly shown in the measurement)

(a) Marble floor tiles for the family room with matching skirtings (Note: PC rate for marble tiles is at $200/m2)

(b) Parquet floor tiles for bedrooms with matching skirting.

(c) Ceramic floor and wall tiles (full height) for bathroom

(d) Plastering & painting for all bedroom walls only (full height)

(e) Ceiling finishes for entire unit

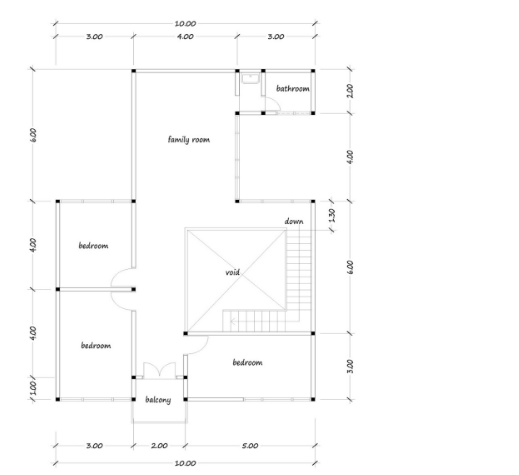

Figure Q2: Floor Plan (NTS)

Specifications:

1. Marble floor tiles shall be 450 x 450 x 30 mm thick and include all doors and opening threshold areas.
2. Marble tiles skirting shall be 175 mm long x 125 mm high x 12 mm thick with rounded top edge and laid against wall surface with 20 mm thick cement & sand (1:3) backing screed.
3. Screed to receive tile finishes shall be 40mm thick comprising one part of cement to three parts of sand.
4. Parquet tiles finished shall be 25 mm Thick and laid on a herringbone pattern as specified.
5. Timber skirting to match parquet floor shall be 150 mm high x 12 mm thick with rounded top edge and laid against plastered wall surfaces with approved adhesive.
6. Ceramic tiles shall be 300 x 300 x 12 mm thick laid on 40 mm thick cement and sand screed (1:3) for floor tiles and on 15 mm thick cement and sand screed for wall tiles.
7. No skirting is required for bathroom finishes.
8. Wall plastering shall be of cement & sand (1:3) applied in two coats overall 20 mm thick.
9. Painting shall be in one undercoat & two finishing coats of emulsion paint on plastered surfaces.
10. Floor to floor height is 3.80 m. Suspended ceiling shall be installed at 3.25 m above floor level with cornices.
11. Door openings shall be as follows:
    (a) Main entrance door: 1.50 m x 2.10 m high
    (b) Internal doors: 0.90 m x 2.10 m high
    (c) Sliding door: 2.20 m x 3.20 m high
12. Window openings shall be as follows:
    (a) Bedrooms 2.70 m x 2.40 m high
    (b) Family room 2.70 m x 2.40 m high & 3.70 m x 2.40 m high
    (c) Bathroom 1.20 m x 0.60 m high
13. Walls shall be 200 mm thick.
14. Dividing strips shall be of stainless steel 2 mm thick x 25 mm deep across doors and openings.
15. Columns shall be 200 x 200 mm plan size.
16. Width of staircase is 1.00 m. Tread is 250 mm.
17. Kerbs at void shall be 100 mm wide and finished with marble tiles.
18. Ceiling shall be of 600 x 600 x 15 mm thick acoustic board laid on aluminium suspended T grid system for all areas except bathroom. Ceiling finishes for bathroom shall be of 15 mm thick cement and sand plaster (1:3) in two coats and painted with one undercoat and two finishing coats of emulsion paint.
19. Dimensions indicated are in metres.
20. Exclude all works at balcony area, void and staircases.
21. Students are to make all other necessary assumptions where required and to state clearly in the answers.

TMA Guidelines Notes:

• Present your answers according to question and parts (Do not put your answers altogether without reference to each question/part)
• Taking off questions must be carried out using prescribed dimension paper (in Word Doc). All other form of presenting your answers will not be accepted. Do not cut and paste using image file.
• All workings must be clearly shown in the dimension column.
• For theory questions, where diagrams are specifically required in the question, they must be provided. Where not specifically required, students should also provide diagrams to help illustrate their answers.
• Do not submit using PDF file.
• Besides quantities accuracy, marks will also be awarded based on students understanding & interpretation of drawings and specifications, approach & method of taking-off, squaring of quantities, providing sign-postings (annotations) and application of the SMM rules.
