Question 1

Interpret Figures Q1.1 to Q1.5.  Specification Notes for Question 1 (Excavation & RC Works):

• Over site excavation works shall commence from the average existing ground level.
• Backfilling required shall be from materials arising from the excavation works. All surplus excavated materials shall be disposed off site to an approved tip.
• Hardcore materials shall comprise of broken stones and concrete.
• Reinforced concrete shall be of grade 30 strength.
• Lean concrete shall be of grade 15 strength.
• Formwork shall be of sawn timber.
• Concrete cover shall be 40 mm thick.
• Column stump main bars shall extend 450 mm above EGL with 350 mm bend in pad foundation.
• Welded wire mesh type A8 shall be used @3.95 kg/m2.

(a) Prepare a take-off list including the units of measurement and relevant SMM clauses for the excavation, reinforced concrete works including formwork and reinforcements shown in the drawings and specifications.

(b) Apply measurement techniques to take off quantities for all of the following:

(i) Sub-structure excavation work
(ii) Sub-structure concrete, formwork and hardcore
(iii) Sub-structure reinforcement for slab, beams, pad foundations and column stumps.

Question 2

Interpret Figures Q2.1 and Q2.2 and apply measurement techniques to take-off quantities for the water meter chamber.

• Specification Notes for Question 2: Excavation shall commence from the existing ground level.
• Piling works shall commence from the average existing ground level. The estimated driven depth is 12.00 m.
• Precast concrete piles shall be of grade 40 concrete and reinforced with 4H20mm diameter main bars with H10mm diameter links @125mm c/c.
• Pile shoes shall be of chilled iron weighing 15 kg & fitted to base pile.
• Pile heads shall be cut off at the required cut of level indicated.
• Load test for piles is not required. Water and drain pipes need not be measured.
• Piling works shall be in provisional quantities and subject to re-measurement.
• Lean concrete shall be of grade 15. Reinforced concrete shall be of grade 30.
• Sawn formwork shall be used.
• Concrete cover shall be 40 mm thick. Bend for slab reinforcement shall be 200 mm long.
• Brick wall shall be in common bricks, 225 mm thick, laid English bond, bedded & jointed in cement and sand mortar (1:3) mix.
• Rebate to house chequered plate shall be 65 mm all-round brick wall.

Question 3

Interpret Figures Q3.1 and Q3.2 and apply measurement techniques to take-off quantities for a section of reinforced concrete driveway, 65.00 m long.

Specifications Notes for Question 3:

• Excavation shall commence from the ground level.
• The width of the concrete driveway is 5.75 m wide x 65.00 m long.
• Lean concrete shall be of grade 15. Reinforced concrete shall be of grade 35.
• Formwork shall be of sawn timber. Concrete cover shall be 50 mm thick.
• Precast concrete kerb shall be of grade 35.
• Weld wire fabric mesh (WWF) type B8 shall be used at 5.9 3kg/m2.
• All granite aggregate shall be 300 mm thick.

Question 4

Differentiate between trial piles and working piles and elaborate on their purposes. Illustrate and describe the various types of pile tests (and their objectives) that are executed on trial piles and working piles.

APPENDIX:

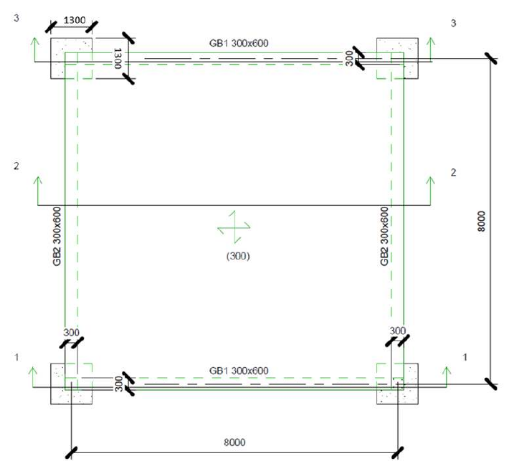

Figure Q1.1: Foundation Plan

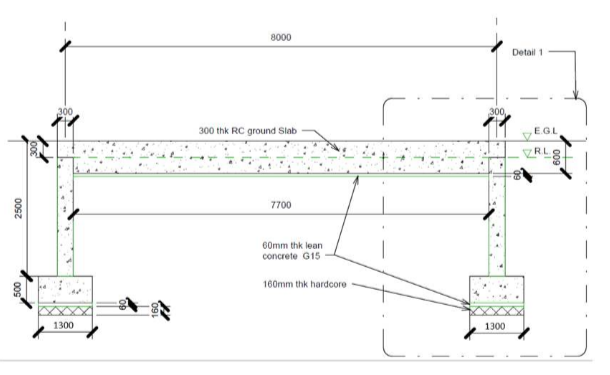

Figure Q1.2: Sub-Structure Section 1-1

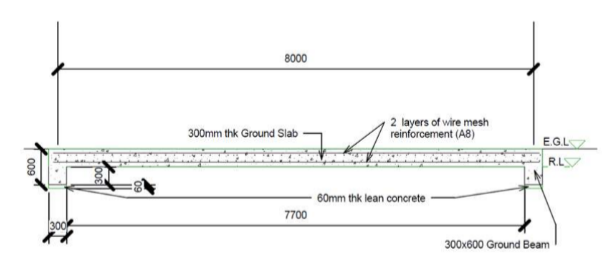

Figure Q1.3: Ground Beam & Slab Section 2-2

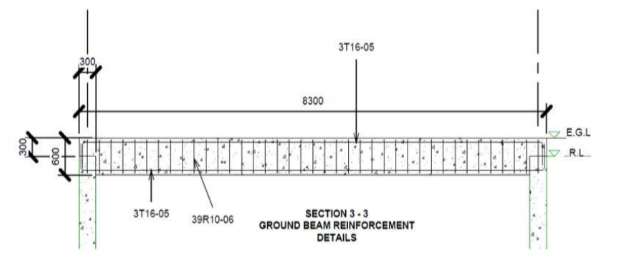

Figure Q1.4: Ground Beam Reinforcement Section 3-3

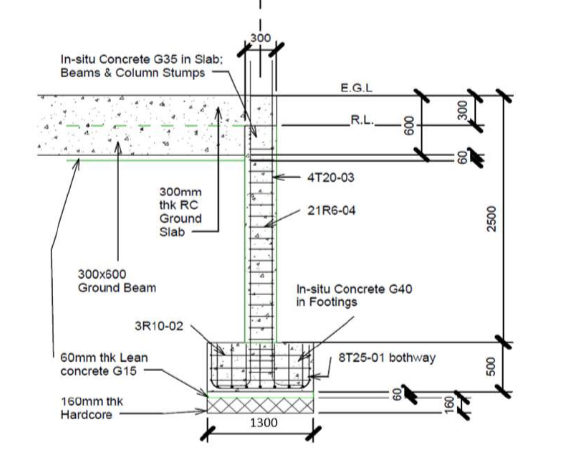

Figure Q1.5: Foundation & Stump Details

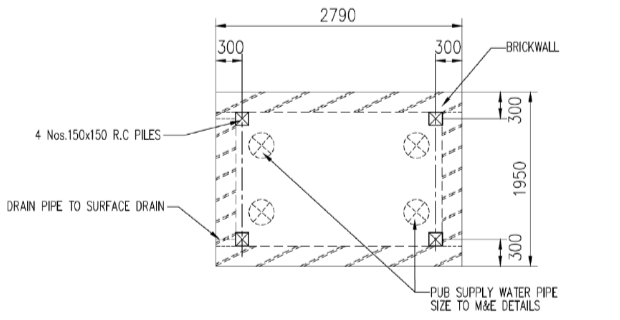

Figure Q2.1: Plan of Water Meter Chamber

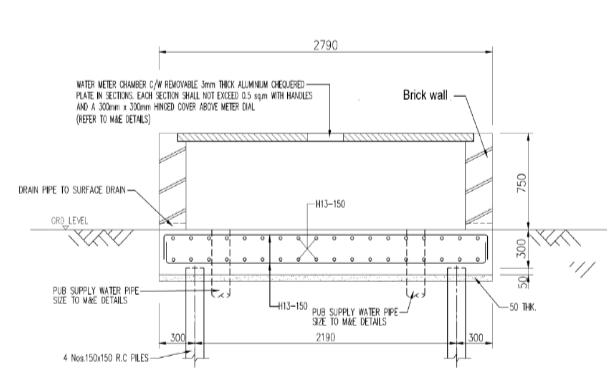

Figure Q2.2: Water Meter Chamber Section

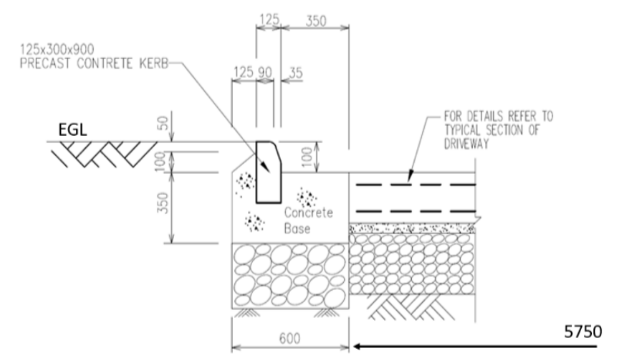

Figure Q3.1: Details of Precast Concrete Kerb & Foundation (for both sides)

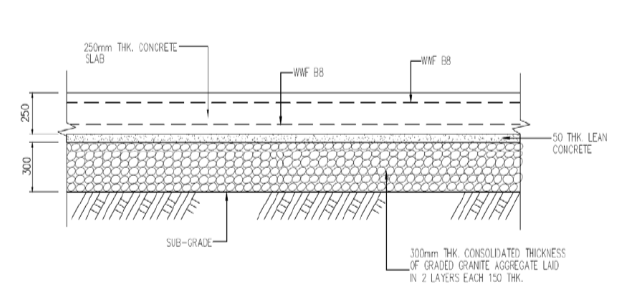

Figure Q3.2: Details of Reinforced Concrete Driveway
