EGE202 Application Programming Project 2 Assignment : Advanced Drawing and Image Editing Tool Using C# Windows Forms

Project 2: Doodle Application (Enhancement from Lab 7)

Submission Requirements: (Compulsory for Each Student)

1. In the working folder!EGE202-24S2, create a subfolder Testing for Project 02 development.
2. Under the File menu, click New Project or use the New Project button to create a new project. Alternatively, use the Create New Project link in the Get Started pop-up dialogue.
3. From the pop-up dialogue, select “C#” for the Language filter, “Windows” for the Platform filter and “Desktop” for the Project type filter.
4. Then choose Windows Forms App (.NET Framework) and click the Next button.
5. Type the name of your new project as Doodle_ and put the project in your working folder.
6. Do not tick the checkbox of [  Place solution and project in the same directory ].
7. Click the Create button to start your project.
8. In the Properties window of the Form control, change the Top Most property of Form1 to ‘True’ and the Start Position property to Center Screen.
9. The default Form file name and class name are always Form1. Let’s change and rename it to Main Form_.

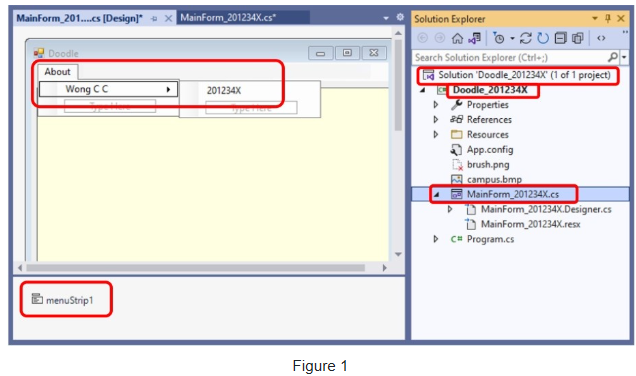

10. From the Toolbar, drag in 1 Menu Strip control into the Form window. Add the About and on separate menu items under the About top menu.
11. Double click the to implement Tool Strip MenuItem_Click(. . .). Add the following codes.

private void gUIDToolStrip Menu Item_Click(object sender, Event Args e)
{
Assembly assembly = Assembly.GetExecutingAssembly();
var attribute =(GuidAttribute)assembly.GetCustomAttributes(typeof(GuidAttribute), true)[0];
Clipboard.SetText(attribute.Value.ToString());
}

Note: You need to add the following namespace for the above code to work.
using System.Reflection;
using System.Runtime.InteropServices;

Project Requirements

Other Assessment Criteria:

Mandatory Points:

Note: It is the student’s responsibility to follow the instructed submission methods and to ensure projects downloaded from Brightspace are executable on another computer.

Project 2 – Doodle Application Test Sequence

Miscellaneous Features & Status (Task F) – 4 marks

Click on all Tools Icon control ⃝ : Brush ⃝ , Text ⃝ Eraser ⃝ , Clear ⃝ , Save ⃝ , Load
Show FULL tool icon image ⃝ , Brush ⃝ Text ⃝ Eraser ⃝ , Clear ⃝ Save ⃝ , Load

1. DRAW Mode (Task A) – 12 marks

Non-White light colour for Canvas  ⃝
Can’t draw on canvas unless the Brush tool is selected   ⃝
Click on the Brush tool icon  ⃝

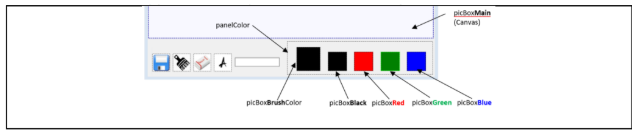

Click on 4 new colour picture boxes (palettes)
The pic Box Brush Colour responds to the palette’s color ⃝ Color5 ⃝ , Color6 ⃝ , Color7 ⃝ , Color8
Set a specific Brush size and colour, then draw a line

• 10 pts ⃝   Color5
• 30 pts ⃝   Color6
• 50 pts ⃝   Color7
• 70 pts ⃝   Color8

Click on the Clear tool icon

2. TEXT Mode (Task B) – 12 marks

• Click on the Text tool icon ⃝
• “Doodle Painting” preset in the textbox ⃝
• Set text font size to 10 pts ⃝ 10 pts
• Show 4 different text color ⃝ : Color1 ⃝ , Color2 ⃝ , Color3 ⃝ , Color4
• Set text font size to 30 pts ⃝ 30 pts
• Show 4 different Text font types ⃝ : Font 1 ⃝ , Font 2 ⃝ , Font 3 ⃝ , Font 4
• No overlapping for all texts ⃝
• Click on the Brush tool icon, set size to 10 pts to draw  ⃝ 10 pts ⃝ 

3. SIZE change (Brush/Eraser) (Task C) – 6 marks

• Click on the Brush tool, set the Brush size to 50 pts ⃝ 50 pts
• Draw a filled square ⃝
• Click on the Eraser tool icon ⃝
• To eraser with 10pts, 30pts & 50pts g ⃝ 10 pts ⃝ 20 pts ⃝ 50 pts

4. LOAD image (Task D) – 10 marks

• Click on the Load tool icon ⃝
• Load a fixed “NYP Campus” BMP image ⃝ BMP
• Load another PNG image on a BMP image ⃝ PNG
• Superimpose the PNG image with the BMP ⃝
• Draw on & Text on the super-image, ⃝ draw ⃝ text

5. Miscellaneous (Task E) – 6 marks

• Save the superimposed image as a GIF format ⃝ GIF
• Click on the Clear tool icon to clear the canvas ⃝
• Reloaded the saved image ⃝
