COMPX102-24B  Assignment 1: Digital Circuit Design

Goals

The  main  goals  of  this  assignment  are  for  you  to  learn  how  to  write  a whole hierarchy of classes, and use subtyping (polymorphism) to make your programs work on just the superclass, rather than all the subclasses.  This  will  simplify  your  programs  and  make  it  easy  to  add  new subclasses.  In  short,  you’ll  be  a  far  more  elegant  and  sophisticated programmer!

Overview

You  are  going  to  write  a  simple  Digital  Circuit  Design  program  that electronics engineers could use to design and test simple digital circuits.  It will allow you to create various kinds of  logic  gates  (AND/OR/NOT etc.),  input  sources  and  output  lamps,  move  them  around  the  design window, add wires to connect them together, and so on.  Each logic gate and wire  will be  represented in  the program by an  object with  methods like Draw, and properties like Left and Top.

You  are  given  a  very  simple  working  version  of  this  digital  circuits program, which only handles AND gates and wires.  Your first task will be to refactor this program to use inheritance, so that it is easier to add new  kinds  of  logic  gates.    After  you  have  done  this,  and  added  several new kinds of logic gates, you will add evaluation methods to the gates, so that  each  gate  behaves  like  a  real  digital  gate  and  computes  its  output signal based on what inputs it is connected to.

The final step will be to add support for compound circuits – so that an engineer can design a small circuit, then group all the gates in that circuit into one “uber-gate”, which can be moved around, copied and reused as a single object.  For example, this could be used to create a half-adder gate from  several  simple  gates,  then  two  copies  of  that  half-adder  could  be combined to give a 1-bit full adder.

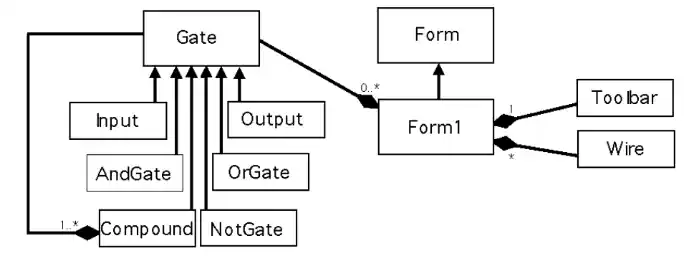

Above  is  a  UML  class  diagram  that  shows  an  example  of  the  kind  of structure  your  final  program  should  have  (I  have  omitted  Pin  and  its relationships).

Step 1: Becoming familiar with the example program

Download the example Circuits.zip file from Moodle and unzip it in your COMPX102 directory.  Open up the Circuits\Circuits.sln file with Visual Studio  and  explore  the  code  and  run  the  program  until  you  understand how it works.  Read the documentation at the top of each class to get an overview of the program.

Step 2: Creating an abstract Gate superclass (1 mark)

This is  the most  important step  of this  project.   You must  create a  new Gate  class,  then  move  some  of  the  AndGate  methods,  properties  and variables up into your new Gate class.  Which ones should you move up?  The  ones  that  seem  to  be  useful  for  all  kinds  of  Gates,  and  are  not specific  to  AND  gates.

Then  change  your  AndGate  class  so  that  it inherits from Gate.  Don't forget to make methods virtual.     [Note: It would also be possible to change the Wire class to be a subclass of  Gate  if  you  want,  but  the  advantages  of  doing  this  seem  reasonably minor to me.]

Next  change  all  the  references  to  AndGate  in  the  Form1  class  so  that they use Gate objects instead.  (The only call to AndGate that you will need  to  keep  is  the  one  in  the  buttonAnd_Click  handler,  where  a  new AndGate object is  created and put into the currentGate variable,  which will now be of type Gate).  Make sure that your program runs correctly, and test its behaviour.

If you find that your Gate class needs to define a method (like Draw), so that Form1 can call it, but the implementation code inside that method is obviously specific to AND gates, then make it an abstract method in the Gate  class  and  override  it  with  the  correct  implementation  in  the AndGate subclass.

For example:

public abstract void Draw(..);
//in Gate class  public override void Draw(..)  { ... }
//in AndGate class

Once you have done this successfully, you have generalized your Form1 program so that it can work on all kinds of Gates, not just AND gates!

In the rest of this assignment, we will be adding lots of interesting kinds of new Gates by  implementing new subclasses.   However, your Form1 code must not change very much as these subclasses are added.

Typically,  you  will  have  to  just  add  one  button  click  handler  for  each new subclass, which creates an instance of that subclass and assigns it to the newGate variable.  The goal is to make as few changes to Form1.cs as  possible  throughout  the  rest  of  this  assignment. This  shows  how  a good  object-oriented  design  allows  us  to  add  new  functionality  to  a program by just adding new subclasses to it.

Step 3: New Logic Gates (1 mark each)

Now implement two new kinds of Gates: OR gates and NOT gates.  Each of  these  will  be  a  subclass  of  Gate,  so  must  override  various  Gate methods and maybe add some extra methods.  Each of these subclasses is worth  one  mark.    Note  that  your  new  gates  should  turn  red  when selected, just like an AndGate does.  As well as OR and NOT gates, you could  implement  a  PAD  gate,  which  is  just  a  small  rectangle  with  one input pin and one output pin.

For each subclass you create, you should add a button to the toolbar with a handler that creates a  new instance of your subclass, and assigns it to the newGate variable. Make sure you change the Image property of the toolbar button to the appropriate icon that has been added to the project  otherwise  it  will  cause  an  error.  This  allows  the  engineer  to drag it into the circuit and position it with a click.

Step 4: Input Sources and Output Lamps (1 mark each)

Add a new subclass  of Gate called InputSource.   This should have  no input pins and just one output pin.  It should contain a boolean variable that  says  whether  the  output  pin  is  currently  high  voltage  (which represents a true value being output) or a zero voltage (which represents a false value being output). An  InputSource  gate  should  look  different when its boolean value is high.  For example, the inside of the gate might be a different colour (avoid red), or it might display a “1” or “0” to show its on/off status.  Each time an InputSource gate is selected, its boolean value should toggle.  That is, selecting it once should change the boolean value  from  false  (the  default)  to  true,  then  selecting  it  again  should change it from true back to false.

Similarly,  create  another  subclass  of  Gate  called  OutputLamp. This will  have  one  input  pin  and  no  output  pins.    Like  the  InputSource,  it contains  a  boolean  variable  that  records  its  current  on/off  status.    It should glow like a small coloured lamp when that variable is true, and be dark when  it  is  false.    Add  buttons for both  of  these  new  subclasses  of Gate,  and  then  test  that  you  can  add  them  to  circuits  and  use  wires  to connect them to other gates.

Step 5: Evaluation Facilities (2 marks)

Now  extend  your  Gate  class  by  adding  an  abstract  Evaluate()  method that returns a boolean result.  Each subclass will implement this method in a different  way, so  that it computes  the correct logical result for  that kind of gate.  For example, the Evaluate() method of an InputSource will just return its internal on/off boolean variable.  The Evaluate() method of the AndGate class will return true if both the input pins evaluate to true, or false otherwise.  (If an input pin is not connected to a wire, you should display an error message and assume that the pin is false.) The code to do this will look something like this (you should extend this to handle not-connected pins):

Gate gateA = pins[0].InputWire.FromPin.Owner;
Gate gateB = pins[1].InputWire.FromPin.Owner;
return gateA.Evaluate() && gateB.Evaluate();

The Evaluate() method of an OutputLamp will evaluate its input pin (like gateA of the AndGate code) and set its internal on/off boolean variable to the  result  of  this  evaluation.    So  the  output  lamps  trigger  a  series  of Evaluate()  calls  to  other  gates  in  the  circuit,  then  they  display  and remember the boolean results of the evaluations.

Add  a  toolbar  button,  “Evaluate”,  whose  handler  loops  through  all  the gates and  asks  each  OutputLamp  to  evaluate itself.    (Use  the  C#  is  or as  operators  to  find  out  which  gates  are  OutputLamps).    To  test  your evaluation functions, use your program to design an exclusive-or circuit with two InputSources and one OutputLamp.

Step 6: Copy and Paste of Gates (1 mark)

Now extend your Gate class by adding an abstract Clone() method that returns a fresh copy of the gate.  Each subclass will implement this in a different way, by making a copy of itself.  Note that it will also need to make a clone of each of its pins.

Add a “Copy” button to the toolbar, that calls the Clone() method of the currently selected gate (if a gate is selected) and assigns it to the newGate variable.    This  will  allow  engineers  to  copy  a  single  gate.    Not  very useful,  but  this  feature  can  become  much  more  useful  once  you've implemented compound gates.

Step 7: Compound Gates (6 marks)

A very powerful and useful feature of most digital circuit editors is that they  allow  a  collection  of  Gates  to  be  grouped  together  into  one compound Gate.

The resulting compound Gate can then be treated as a new  primitive  Gate,  selected  as  one  whole  group,  moved  around together, and maybe copied and pasted etc.

Implement a Compound class, which will be another subclass of Gate, but will  contain a list of Gate objects and an AddGate method that adds a  Gate  to  that  list.

Add  a  “Start  Group”  button  to  the  toolbar,  whose handler  creates  a  new  empty  Compound  gate  and  stores  it  in  a  new instance variable of Form1, called newCompound.  If a Gate is selected while  newCompound  is  non-null,  that  gate  is  added  into  the newCompound object.  Then add an “End Group” button to the toolbar, with  a  handler  that  moves  newCompound  into  newGate  and  resets newCompound to null.

1.  Implement  the  Compound  Move  method  so  that  all  its  gates  move together. [2 marks]
2.  Implement the Compound Selected property so that either all gates are selected, or none are selected. [2 marks]  3.  See  if  you  can  implement  the  Compound  Clone  method.    This  is seriously  hard,  because  you  need  to  clone  the  wires  as  well  as  the gates, and  make  sure  that the  wires  connect  between the  right  gates.  [2 marks, 1 mark if only clones gates]
