ARCH1004 DRAW and CAD Assignment 01 Architecture Brief 2025-26 | UWS

ARCH1004 ASSESSMENT 01

1 DESIGN a Single Storey 3br Residence suitable for Western Suburbs Sydney
2 SUSTAINABILITY Principles must be incorporated throughout your Design
3 SITE PLAN select a site – not given – design to that site.
4 AREAS should be In keeping with current market expectations western suburbs (approx. 200m2)
5 SUBMISSION thru Turnitin   (electronic scan only of your A3 sheet sizes)
6 SHEET ONE – Floor Plan and incorporating Site Boundaries and Landscaping
7 SHEET TWO – Only Two Elevations (say one long and one short elevation) 8 FLOOR PLAN – make 1:100 scale showing all internal furniture
9 ELEVATIONS – indicate true heights and indicate external materials and openings
10 INTERNAL CIRCULATION – minimise “wasted areas”
11 Use A3 sheets in landscape orientation
12 Use paper and pencil, add room names & room sizes (eg 3x4m), notes, wall thicknesses, furniture, fixture and fittings, finalise with Artline pen
13 Refer to PODs and tutorial lessons for how to prepare and present your submission.

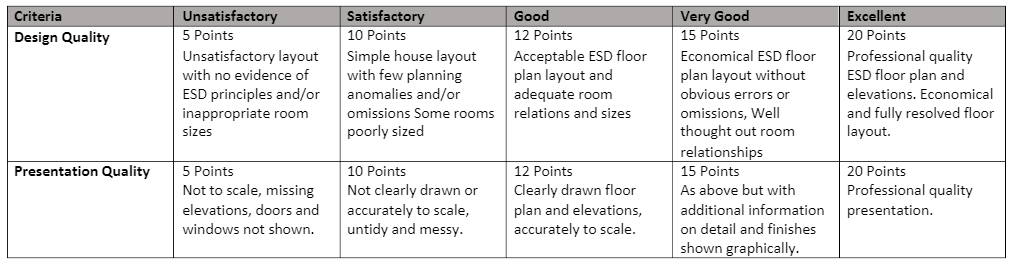

ARCH1004 Assessment Criteria:
